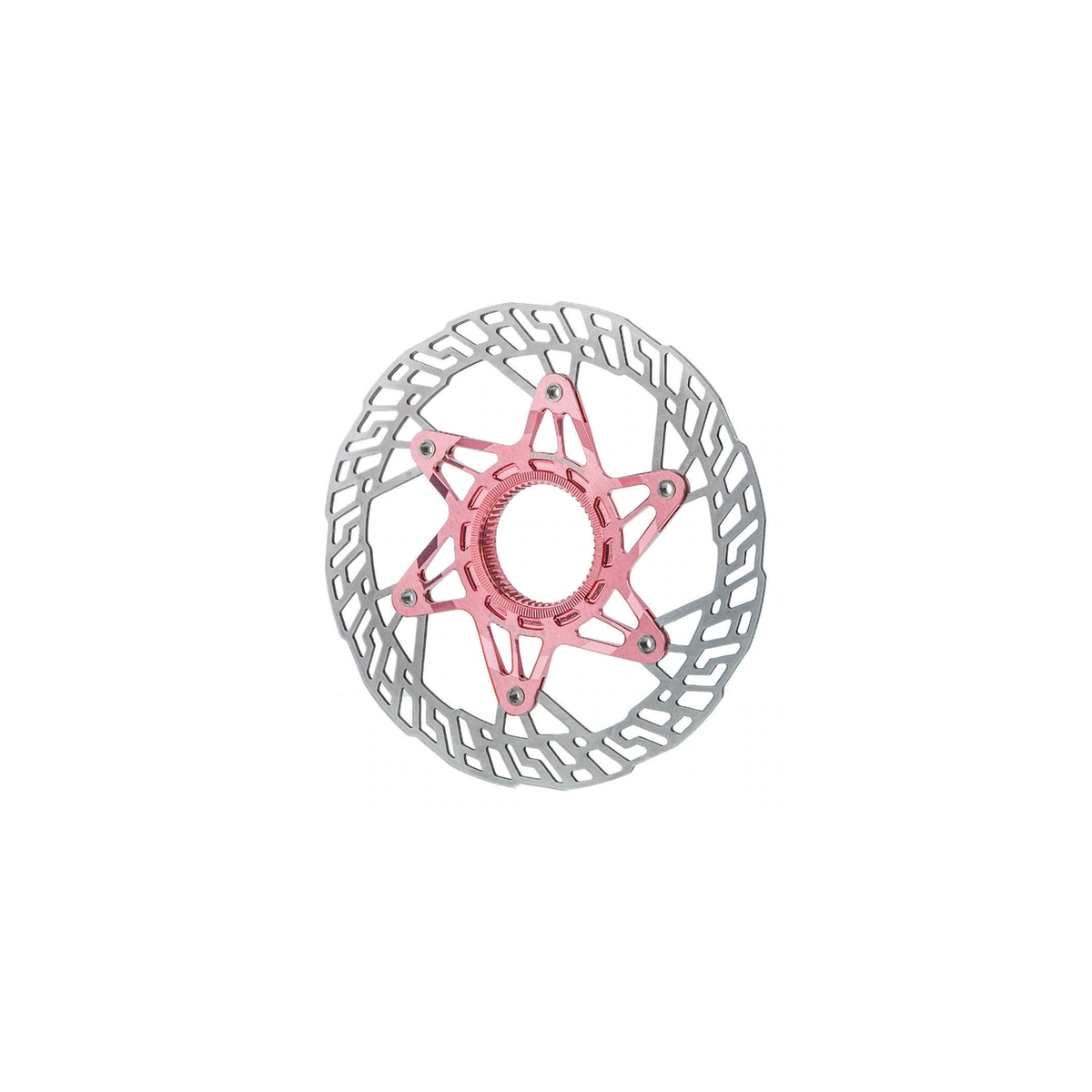

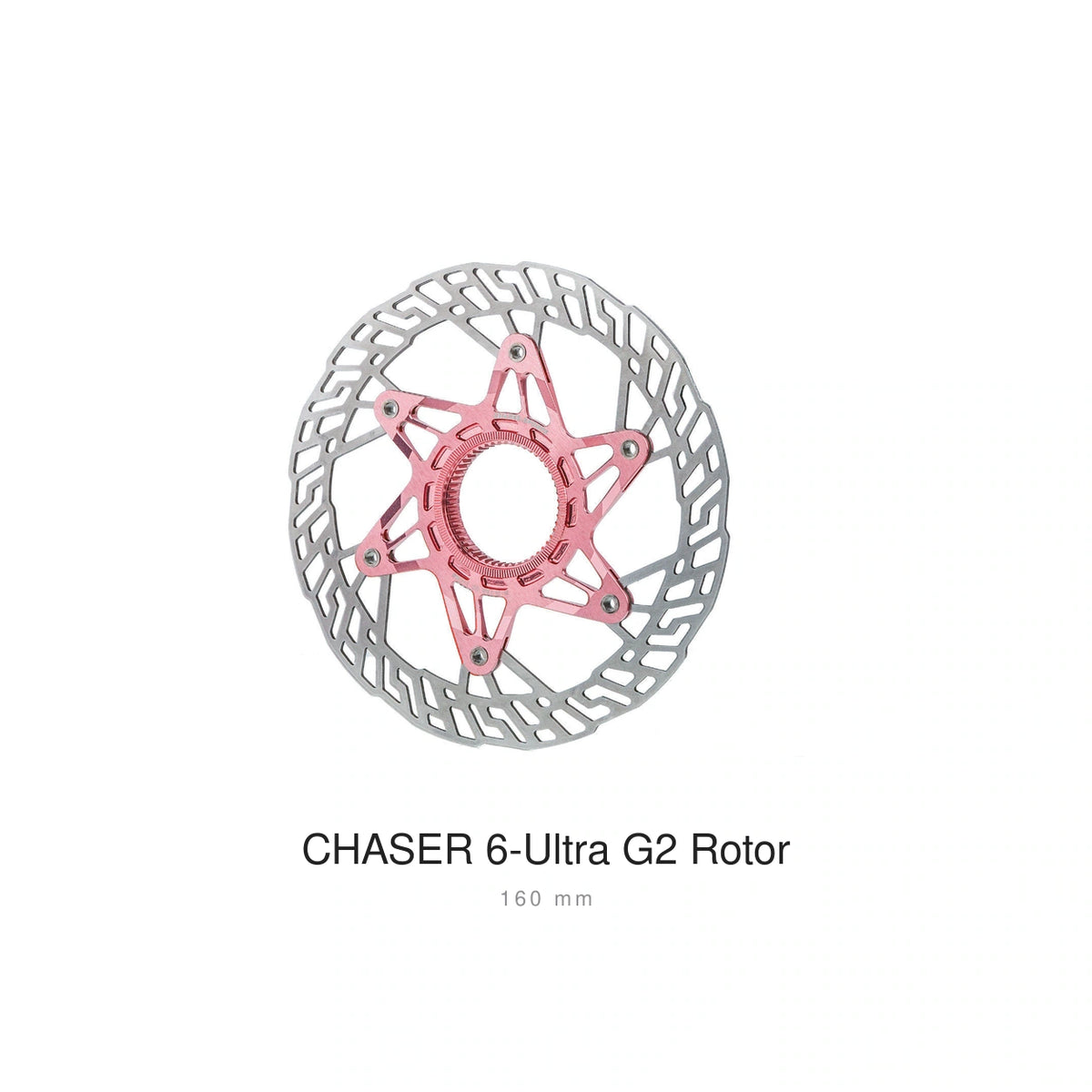

Chaser 6-Ultra G2 Center Lock Disc Rotor for Road / Gravel

TiWorks Partner Select: supplied through our cooperation with Chaser, this 6-Ultra G2 Center Lock rotor complements TiWorks titanium brake hardware and premium road / gravel disc-brake builds.

Designed for road and gravel center lock wheelsets, the 6-Ultra G2 rotor uses an optimized 7075-T6 alloy carrier with a heat-treated SUS420 stainless steel braking track. Compared with the previous generation, the supplier notes a larger braking surface, improved torsional strength, and an updated carrier structure using hollow titanium rivets.

Key Features:
- 6-Ultra G2 lightweight disc rotor
- Center Lock mounting interface
- For road and gravel disc brake builds
- Supplier note: braking surface increased by approx. 30% versus the previous generation
- Supplier test note: 80–120 Nm torsional fatigue test for 10,000 cycles
- Supplier test note: maximum destructive torque approx. 284 Nm, around 45% higher than the previous generation
- Lockring not included

Specifications:
- Sizes: 140 mm / 160 mm
- Mount type: Center Lock
- Carrier material: 7075-T6 aluminum alloy
- Braking track material: SUS420 stainless steel
- Process: full CNC machining / heat treatment
- Supplier heat-resistance note: braking track heat-deformation temperature up to approx. 500°C
- Weight: approx. 89.2 g for 160 mm / approx. 78.5 g for 140 mm

Supplier Weight Comparison:
- Shimano MT900: approx. 108 g for 160 mm / approx. 88 g for 140 mm
- Chaser 6-Ultra G2: approx. 89.2 g for 160 mm / approx. 78.5 g for 140 mm

Safety & Use Notes:
- Replace the rotor before thickness drops below 1.4 mm
- Replace brake pads before pad thickness drops below 0.5 mm
- For stronger braking performance, the supplier recommends metallic pads such as Shimano L04C-type pads
- Confirm rotor size, caliper clearance, frame / fork specification, and brake pad compatibility before ordering.
